Tube Mounts - Nanomount Series

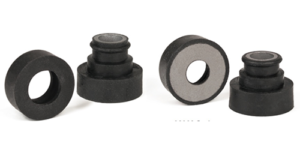

Simple, compact, and rugged vibration isolators are ideal for lightweight applications and small payloads.



Tube Mounts -Nanomount Series

Simple, compact, and rugged vibration isolators are ideal for lightweight applications and small payloads. Recommended for installations where packaging space is at a premium. Protects electronic equipment such as control modules, sensors, monitors, and displays from the damaging effects of shock and vibration. Low profile design for ease of packaging in small installations.

SPECIFICATIONS

[Natural Frequency] 20-40 Hertz
[Load Range] 4-64
[Transmissibility at Resonance] N/A
[Resilient Element] Natural Rubber, Neoprene
[Standard Materials] Steel
[Weight] See dimensional drawings

Load Range

  • 2 Series with 20 load ratings to 64 lbs. per isolator

Environmental Data

  • Neoprene Operating Temperature Range: -20° F to +180° F (-30 C to +82° C) and is resistant to oils, most solvents and ozone.
  • Natural rubber Operating Temperature Range :  -40° F to +180° F (-40 C to +82° C).
  • Special elastomers and finishes are available for applications in severe environments.

Applications

  • General purpose compact isolator design
  • Control Modules
  • Sensors
  • Electronic Equipment
  • Monitors/Displays
  • Small Machinery, Pumps & Compressors

Benefits & Features

  • Highly Economical in cost and size
  • Bonded construction provides consistent performance characteristics
  • Overlapping load ranges
  • Fail-safe when used with snubbing washer
  • Axial to radial stiffness of 1:2
  • Available in natural rubber and neoprene - other materials also available for special environments
  • Snap-lock feature holds the mount together and prevents separation during assembly/installation
  • All-attitude mounting capability allows the Nanomount™ to be installed in any orientation
  • Integral bonded washers eliminate the need for separate washers and reduce component count
  • Performance and durability in a low profile geometry and fail-safe construction

Data Sheets

Special Options Available

  • Elastomers
  • Durometer/Stiffness
  • Metals
  • Metal Paint/Finish
  • RoHS Compliance
  • Marking
  • Packaging
